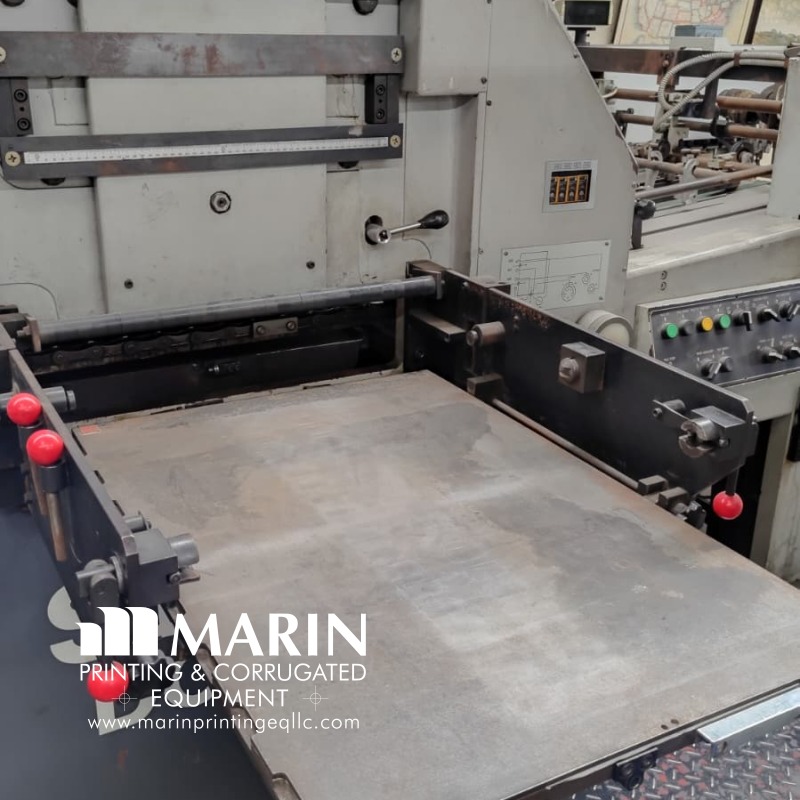

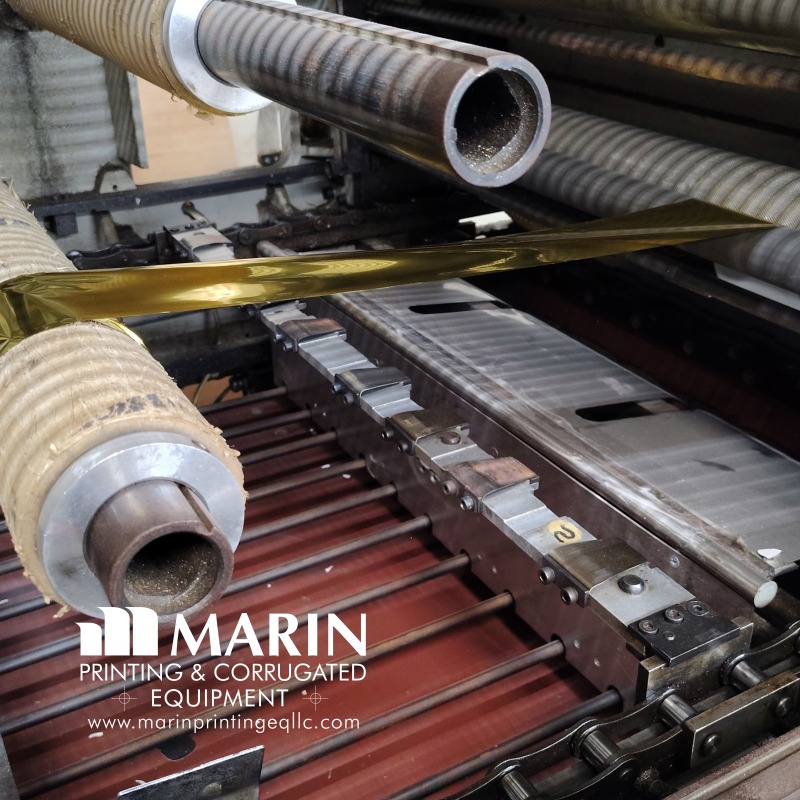

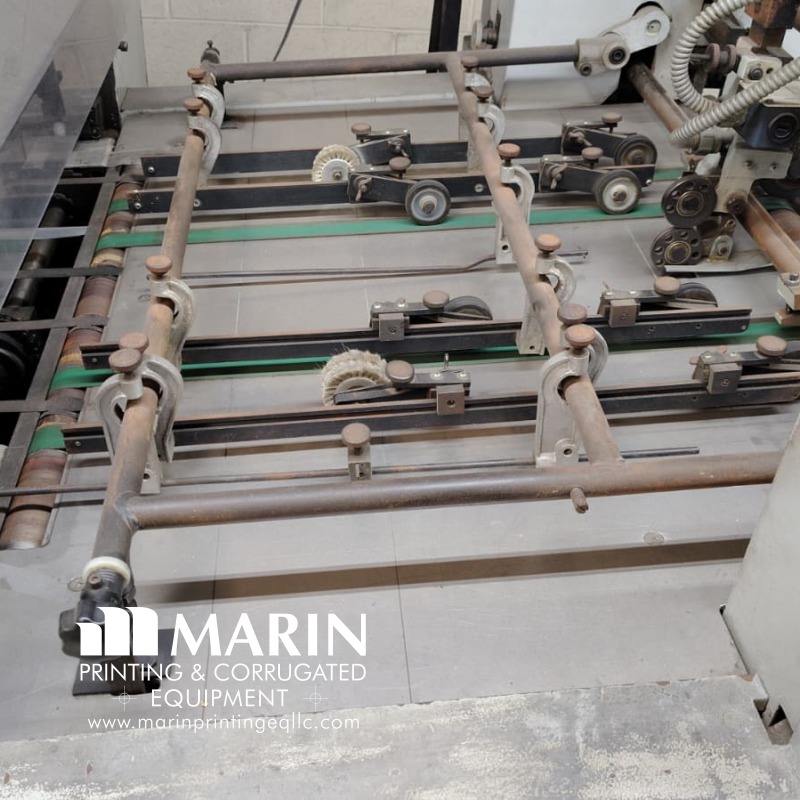

STANDARD PAPER BOX DC 780 FS FOIL STAMPING AND DIE CUTTER

Max. Sheet Size 21 1/4" x 30 11/16" ( 540 x 780mm ) Min. Sheet Size 8 1/4" x 12 1/4" ( 210 x 31ümm ) Serial 99141 Model DC 780FS Max. Foil Stamping Area 20" x 29 1/2" (510 x 750mm ) Max. Die Cutting Area 20 7/16" x 29 1/2" (520 x 750mm ) Max. Die Cutting Speed 5,500 I.P.H. Max, Foil Stamping Speed 3,000 I.P.H. Impressional Strength 144 U.S. tons ( 120 metric tons ) Min. Thickness Paper .004" ( 80 grams ) Max. Thickness Board .060" (2000 grams ) Longitudinal foil pulls x 3 High speed, up to 5,500 sheets per hour Non-stop sheet feed / delivery Well maintained by in-house engineers Can be viewed in operation Non-stop operation AC Frequency inverter control Touch screen control Foiling max sheet area 525mm x 750mm Die cutting inside chase 530mm x 760mm Feeder pile height 1,200mm Delivery pile height 900mm Continuous feed Continuous delivery AC frequency inverter Start-up & stop controlled by two-way electromagnetic clutch system PLC controlled Independent temperature controllers Comes with manuals Pre-heater timing to enhance working efficiency
